STAS Multirail Adapter
STAS Multirail Adapter - 60W
STAS Multirail Adapter - 60W or 96W

Alternative Views:


Our Price: $58.80


Free Shipping
Availability:: Usually Ships in 2 to 3 Business Days
Product Code: VT20400


Power:


Qty:
Description Mounting Instructions

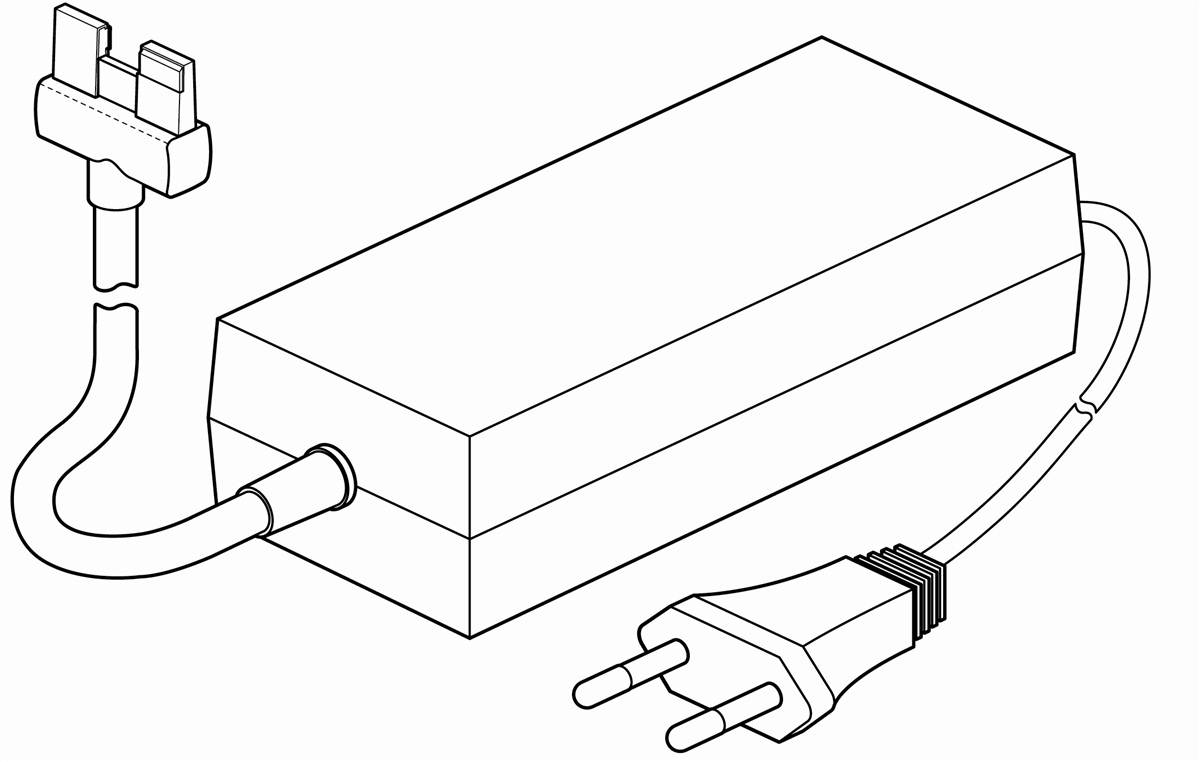

Stas Multirail adapters for use with all Multirail systems. Each adapter comes with a 118" (300 cm) connector cord with the patented Stas rail connector plug at one end and 72" 125V 10amp power cord on the other. UL tested and approved, choose between the 60 watt or 96 watt models. The Stas 60 watt adapter allows up to 15, 3 watt LED lights or 2 halogen 20 watt lights on a maximum rail length of 52 1/2 feet, the Stas 96 watt adapter allows up to 30, 3 watt LED lights or 4 halogen 20 watt lights on a maximum rail length of 52 1/2 feet.

You can add any number of adapters to our Stas multirail systems increasing the number of lights to any room. By separating the internal rail conductor you can have full control over how your lights turn on and off. Turn on an entire room from one switch or control each wall separately. Whichever you choose our rail systems allow you full control. For more information call our offices and speak directly with our technicians ready to help you develop a system that suites your needs.
Features
Stas Multirail Adapter
VT20300

Stas Multirail Adapter
VT20400
Stas Multirail Adapter
VT20500




Power Wattage 96 Watts
60 Watts
18 Watts
Voltage
12 volt DC
12 volt DC 12 volt DC
Amperage 8 amp
5 amp
1.5 amp
Max. Rail Length Halogen Lights
26 1/4'
26 1/4' LED lights only
Max. Rail Length LED Lights
52 1/2' 52 1/2' 52 1/2'
Maximum Bulbs Halogen 20w
4 2 LED lights only
Maximum Bulbs LED 3w
30 15 5
Input AC 100-240V ~ 50/60Hz 2A AC 100-240V ~ 50/60Hz 1.6A AC 100-240V ~ 50/60Hz 0.7A
Output DC 12V == 8A DC 12V == 5A DC 12V == 1.5A
Dimensions 5 7/8" x 2 1/2" x 1 1/2" 5 1/8" x 2 1/8" x 1 1/4" 2 15/16" x 3 3/8" x 1 7/16"
Weight 21.16 oz (600 grams)

16.93 oz (415 grams)

6.34 oz (180 grams)

Connection Input
18AWG NEMA 1-15P 3.3'
IEC 320-C7, Polarized
125V, 10A AC

18AWG NEMA 1-15P 3.3'
IEC 320-C7, Polarized
125V, 10A AC


Input plug (EU)


Connection Output
Patented cable 118" (3 mtrs) Patented cable 118" (3 mtrs) Patented cable 118" (3 mtrs)
Certifications CE, UL, ROHS
CE, UL, ROHS CE, UL
